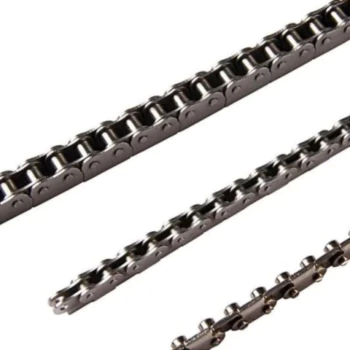

Anti-sidebow Chains for Pushing Window P11.5
The smart window anti-bending chain is a chain used to prevent windows from bending. It is suitable for sliding windows and outward-opening windows, and is driven by an electric motor or hydraulic cylinder. Made of high-quality steel and treated with a zinc-nickel alloy anti-corrosion coating, the chain is durable, operates silently, and offers high stability for long-term use.
Details of P11.5 Anti-sidebow Chains for Pushing Window
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Ultimate tensile strength | ||
| P | d1 max | b1 | d2 max | L max | H max | h | T | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN | |
| P11.5SS | 11.5 | 6.00 | 3.00 | 3.00 | 10.8 | 13.5 | 8.5 | 1.5/1.5 | 5.5 |
Features of Anti-Sidebow Chains
One of the most important characteristics of the anti-sideways bending chain is its rotational capability. When positioned correctly, the chain can bend sideways. Therefore, the chain consists of two independent parts: inner chain plates and outer chain links. The latter two components are made of plastic material. The pivot pin 7 and bolt 6 are made of steel. Grooves on the inner chain plates allow the aligning protrusions to further pivot into this area.
The chain links are connected to each other by hinges. The hinges are designed to rotate around a first and a second axis. The hinges consist of pivot bolts or pins connected to the outer chain links. The inner chain links are connected to the outer chain links through lateral pivot holes, which are defined by separate support plates. The dimensions of the hinges allow the chain plates to pivot between the inner and outer chain links. This feature helps to counteract sideways bending.
Another characteristic of the anti-sideways bending chain is the extra clearance left between the pins and bushings. This chain is designed for bending with a minimum radius of 250 mm. It can be equipped with all common roller chain attachments, such as sprockets. However, the load-bearing area of the anti-sideways bending chain is limited. Therefore, compared to similar roller chains, they are only suitable for lower load levels.
Anti-Sidebow Chains and Sprockets
Several different types of anti-sideways bending chains and sprockets are available. While similar to standard roller chains, they have larger clearances between the pins, bushings, and chain plates. Additionally, they have smaller pin diameters. These chains are ideal for applications involving curves. The sprockets can be made of stainless steel or treated with various coatings.
The most important consideration when choosing an anti-sideways bending chain is its design. These chains have larger clearances between the pins and bushings. Furthermore, the fit between the inner and outer links is more flexible. This means that they can be used on curved tracks and provide greater flexibility for machinery. Ever-power is one of the professional chain and sprocket suppliers in China. We offer high-quality anti-sidebow chains and sprockets at competitive prices. Contact us now if you are interested!
