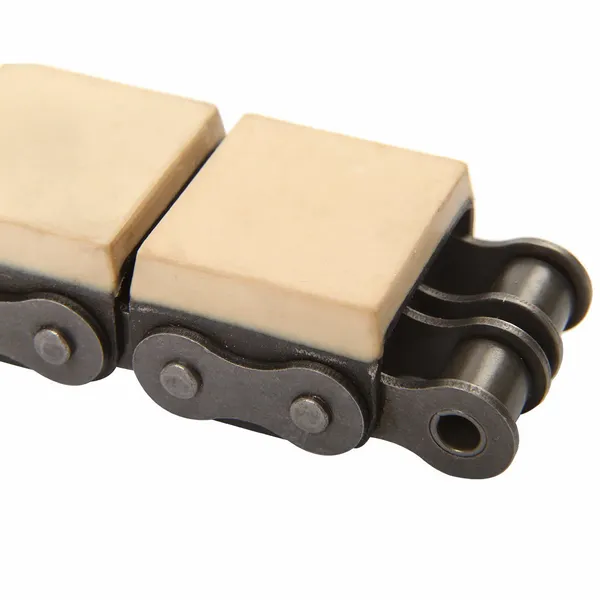

10B-G2 Rubber Top Chain 10B-G2 Rubber Top Roller Chain
The 10B-G2 rubber top chain is a high-strength and high-quality roller chain with a rubber top. It is known for its durability and strength, and its ability to withstand heavy loads and high speeds. The “10B” in the name refers to the pitch of the chain, which is 5/8 inch (15.875 mm). The “G2” refers to the chain’s construction, which is a type of double-strand chain with two rows of rollers. The rubber top on the rubber top chain helps to provide better grip and reduce slippage, making it ideal for applications where high torque is required. This type of 10B-G2 rubber top chain is commonly used in industries such as agriculture, forestry, construction, and manufacturing.
▍10B-G2 Rubber Top Chain Sizes Chart:
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate and attachment dimension | Tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | h2 max | A | B | H | T | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 10B-G2 Chain | 15.875 | 10.16 | 9.65 | 5.08 | 39.7 | 14.70 | 33.30 | 30.00 | 17.0 | 1.50 | 44.5/10004 | 2.56 |
▍10B-G2 Rubber Top Chain Specifications:
1. Chain Material: Alloy steel & Stainless steel
2. Rubber Material: NBR & NR
3. Rubber hardness: Shore hardness 65-75, 75-85
4. Chain Surface Treatment: Shot peening & Blackening & Bluing
5. Chain Size: 10B-G1 Chain; 10B-G2 Chain
| Product name | 10B-G2 Rubber Top Chain (Rubber Top Roller Chain) |
| Materials Available | 1. Stainless Steel: SS304, SS316, etc |
| 2. Alloy Steel: 45Mn, 42CrMo, 20CrMo, etc | |
| 3. Appurtenant material: NR, NBR | |
| 4. OEM, according to your request | |
| Surface Treatment | Shot peening, Blackening, Oxygenation, Polishing, Zinc-plated, Nickel-plated, Anodized, etc. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant |
| Design criterion | ISO DIN ANSI & Customer’s Drawing |
| Size | Customer’s Drawing & ISO Standard |
| Application | Wood products factory, plywood factory |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certificate | ISO9001: 2008 |
| Advantage | First quality, Best service, Competitive price, Fast delivery |
| Delivery Time | 20 days for samples. Forty-five days for official order. |
▍10B-G2 Rubber Top Chain Vs 10B-G1 Rubber Top Chain
The main difference between the 10B-G2 rubber top chain and the 10B-G1 rubber top chain is their construction. The “G2” and “G1” in the names refer to the different generations of the rubber top chain design.
The 10B-G2 rubber top chain has a double-strand construction with two rows of rollers, which provides greater strength and durability than the single-strand 10B-G1 rubber top chain. The rollers are also larger in the 10B-G2 rubber top chain, which allows it to handle heavier loads and higher speeds.
Another difference between the two chains is the design of the rubber top. The 10B-G2 rubber top chain has a more advanced rubber top design than the 10B-G1 rubber top chain, which provides a better grip and reduces slippage even further. This makes it ideal for applications where high torque is required.
Overall, the 10B-G2 rubber top chain is a more advanced and robust design than the 10B-G1 rubber top chain, making it a better choice for heavy-duty industrial applications that require high strength and durability.
|  |
| 10B-G2 Rubber Top Chain | 10B-G1 Rubber Top Chain |
▍10B-G2 Rubber Top Chain Common Applications:
10B-G2 rubber top chains are a type of roller chain that feature rubber tops on each chain link. These rubber top chains are specifically designed for conveying applications where delicate handling and reduced damage to products are essential. Common applications of 10B-G2 rubber top chains include:
(1) Food and Beverage Industry: These 10B-G2 rubber top chains are commonly used in the food and beverage industry for conveying various types of products, such as bottles, cans, jars, and cartons. The rubber top provides gentle handling and minimizes the risk of damage to the products.
(2) Packaging and Carton Handling: 10B-G2 rubber top chains are suitable for conveying packaged products, including cartons and boxes, ensuring smooth and stable transportation with minimal vibration and noise.
(3) Pharmaceutical Industry: In the pharmaceutical industry, these 10B-G2 rubber top chains are used for conveying containers, such as bottles and vials, with delicate contents that require minimal impact and vibration during transportation.
(4) Glass and Ceramics Processing: In glass and ceramics processing plants, these 10B-G2 rubber top chain is used to convey fragile glass or ceramic items, minimizing the risk of breakage or chipping.
(5) Paper and Printing Industry: These 10B-G2 rubber top chains are used in the paper and printing industry for conveying sensitive materials, such as printed sheets, without causing damage or smudging.
▍10B-G2 Rubber Top Chain Sprockets for 10B-G2 Rubber Top Chain
10B-G2 rubber top chain sprockets are designed to work specifically with the 10B-G2 rubber top chain. These 10B-G2 rubber top chain sprockets have teeth that mate with the chain to transmit power and motion between the chain and the sprocket. The 10B-G2 rubber top chain is a type of roller chain that features rubber top plates on the chain links. This design provides a more secure grip on the sprocket teeth, reducing the risk of slippage and improving the chain’s overall performance.
When selecting 10B-G2 rubber top chain sprockets, it is important to consider factors such as the number of teeth, pitch diameter, and bore size. These specifications should match the requirements of the application to ensure proper operation and longevity of both the 10B-G2 rubber top chain and sprocket. It is also important to regularly inspect and maintain the chain and 10B-G2 rubber top chain sprockets to prevent wear and damage, which can negatively impact their performance and lead to premature failure.
▍China Rubber Top Chain Manufacturers
We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, palm oil chains, sugar mill chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains, silent chains, PIV chains, stainless steel chains, car parking chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
