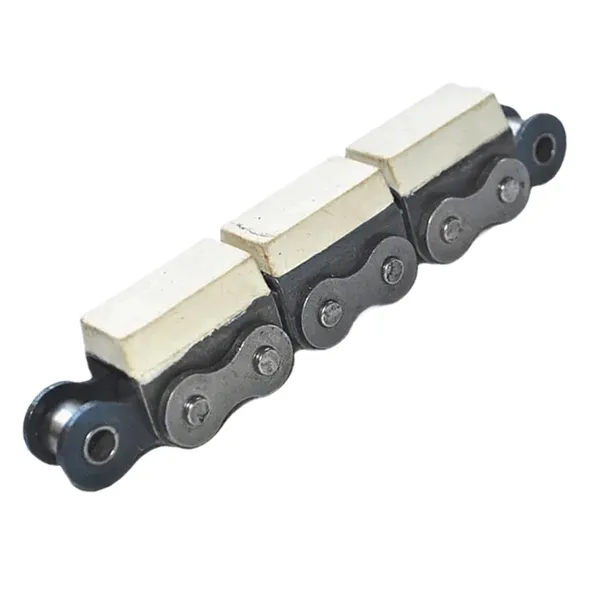

24B-G1 Rubber Top Chain 24B-G1 Rubber Top Roller Chain
In the realm of industrial conveyance, the 24B-G1 rubber top roller chain emerges as a paragon of gentleness and robustness. Crafted for transporting delicate substrates like varnished timber, crystalline glass, and composite laminates without inflicting blemishes. Its construction integrates thermally fortified elements with a superior elastomeric overlay. The G1 configuration boasts a sleek, planar facade that safeguards conveyed items from abrasions or indentations. Precision reigns supreme here.
This chain’s geometry includes a 38.100 mm pitch, 25.40 mm roller diameter, 25.40 mm inner plate span, 14.63 mm pin diameter, and 61.6 mm pin extent. Custom tailoring accommodates bespoke operational demands. Versatility defines its essence.
Here are some of the benefits of using the 24B-G1 rubber top chain:
- Impervious to marring, preserving the integrity of sensitive payloads.
- Forged from thermally tempered alloys, ensuring enduring fortitude amid rigorous cycles.
- Elastomeric crown dampens acoustic emissions and oscillatory forces.
- Adaptable lengths and modifications align with niche exigencies.
 |  |
▍24B-G1 Rubber Top Chain Dimensions:
| Số chuỗi | Sân bóng đá | Đường kính con lăn | Khoảng cách giữa các tấm bên trong | Đường kính chốt | Chiều dài chốt | Kích thước tấm và phụ kiện | Độ bền kéo | Trọng lượng trên mỗi mét | ||||
| P | d1 tối đa | b1 phút | d2 tối đa | L tối đa | h2 tối đa | MỘT | B | H | T | Q phút | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 24B-G1 Chain | 38.100 | 25.40 | 25.40 | 14.63 | 61.6 | 33.20 | 47.00 | 72.60 | 34.0 | 4.50 | 160.0/36363 | 11.25 |
▍24B-G1 Rubber Top Chain Specifications:
1. Chain Composition: Ligatured alloys and austenitic steels.
2. Elastomer Formulation: Nitrile butadiene and natural rubbers.
3. Durometer Rating: Shore scales spanning 65-75 to 75-85.
4. Surface Conditioning: Peen-blasted, ebonized, or cyanided.
5. Dimensional Variants: Encompassing 08B-G1 through 24B-G1 configurations.
| Tên sản phẩm | 24B-G1 Rubber Top Chain (Rubber Top Roller Chain) |
| Vật liệu có sẵn | 1. Thép không gỉ: SS304, SS316, v.v. |
| 2. Thép hợp kim: 45Mn, 42CrMo, 20CrMo, v.v. | |
| 3. Vật liệu phụ trợ: NR, NBR | |
| 4. Sản xuất theo yêu cầu (OEM) của quý khách. | |
| Xử lý bề mặt | Phun bi, làm đen bề mặt, oxy hóa, đánh bóng, mạ kẽm, mạ niken, anot hóa, v.v. |
| Đặc điểm | Chống cháy, chống dầu, chịu nhiệt |
| Tiêu chí thiết kế | ISO DIN ANSI & Bản vẽ của khách hàng |
| Kích cỡ | Bản vẽ của khách hàng & Tiêu chuẩn ISO |
| Ứng dụng | Nhà máy sản xuất sản phẩm gỗ, nhà máy ván ép |
| Bưu kiện | Thùng/hộp gỗ và pallet, hoặc đóng theo yêu cầu. |
| Giấy chứng nhận | ISO9001: 2008 |
| Lợi thế | Chất lượng hàng đầu, dịch vụ tốt nhất, giá cả cạnh tranh, giao hàng nhanh chóng. |
| Thời gian giao hàng | Thời gian giao hàng mẫu là 20 ngày. Thời gian giao hàng chính thức là 45 ngày. |
▍Benefits of 24B-G1 Rubber Top Chain:
The 24B-G1 rubber top roller chain proffers multifaceted virtues, transcending mere functionality.
1. Blemish-Resistant: Its elastomeric veneer obviates scuffs or gouges on conveyed artifacts, vital for polished lumber, vitreous panes, and fabricated sheeting. Delicacy preserved.
2. Resilient Fortification: Thermally annealed constituents bestow unyielding tenacity, ideal for abrasive environs where attrition looms large.
3. Attenuation of Resonance: The polymeric sheath quells auditory disturbances and kinematic tremors, contrasting starkly with unyielding metallic counterparts. Serenity in motion.
4. Modular Adaptability: Assorted spans and bespoke alterations cater to eclectic operational milieus, broadening its utility spectrum.
In summation, this xích epitomizes excellence in non-abrasive, stalwart, and hushed conveyance solutions. A judicious selection for discerning engineers.
▍Rubber Top Chain Sprockets and Rubber Top Chains
A rubber top sprocket features an elastomeric mantle over its dentition, mitigating cacophony and pulsations while shielding against erosive degradation. Predominant in sectors demanding auditory restraint, such as alimentary assembly and encasement operations. Durability amplified.
Complementarily, a rubber top xích adorns its linkages with a similar polymeric shroud, curtailing clamor and attrition. Essential where tranquility prevails.
Core Merits of Rubber Top Sprockets and Chains
- Suppression of Din and Oscillation: Polymeric encasements on sprockets and chuỗi abate sonic and vibratory nuisances, imperative in subdued settings.
- Abrasion Safeguard: Envelopes prolong component longevity by thwarting corrosive wear.
- Surface Integrity: Prevents imprints on fragile cargoes, safeguarding aesthetic and structural wholeness.
- Facile Deployment: Streamlined installation and upkeep suit high-maintenance regimes.
For quiescent, enduring, and gentle mechanisms, these components stand unrivaled.
▍Các nhà sản xuất xích cao su hàng đầu Trung Quốc
At UK roller-chain-manufacturers.com Co., Ltd, we excel in bespoke chain assemblies per client blueprints and mandates. Our hallmarks: unwavering integrity, equitable valuations, swift consignments, and attentive stewardship. Our repertoire spans transmission and conveyance linkages, including roller variants, dual-pitch transporters, cavitated pins, foliar chains, planar crowns, lateral arcs, arboreal haulers, 81X series, agrarian rollers, S55 types, taciturn linkages, X458 conveyors, PIV mechanisms, austenitic steels, galvanized or nickel-clad, engineered constructs, pintle steels, forged drops, malleable irons, and sundry adjuncts.
